12V-36V 4CH Wireless Control Relay Switch 433MHz 4 Channel Remote Switch 2 Transmitters Receiver Universal Garage Doors,Window, Motor DC 12V 24V 36V Remote Relay Switch (DC 12V-36V/ 2* Controller)

4CH Remote Switch Features: DC12V-36V 4CH wireless siwtch,widely used for Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows. it can can control 4 Channel circuit at same time. More convenient wiring combination. the switch can used 12V~36V control Low and high Voltage 1V-250V. Engineers can modify to other wireless circuits. 1. Transmitter Channel: 4 CH Operating Voltage: DC12V (23A battery include) Operating Current: 30MA Operating Frequency: 433MHz Frequency Distance: 100 meter(open/ideal) in theory, 15%-50% in reality, 100% safe. Encode: Learn Code (Can clear and learn). 2. Switch Technical Parameters: Channel: 4 Channel Decode: Learning code Working Voltage: 12V~36V Output way: Momentary/Toggle /Latched/Momentary+Toggle Maximum Load Current: 10A Relay Load:10A 1V-250V 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC Working temperature : -40\'C - +70\'C Size : 8.8*6*3 CM How to remove/delete the remote control? Press the learn button 8s, till the indicator light flashes to off. Work Model: 1.Momentary: Pressing and holding the button, the relay is on, releasing button is off. 2. Toggle/Self-lock: Pressing the button, the relay is on, and pressing again is off. 3.Inter-lock/latched: Press button 1, relay1 will be on; Press button 2,relay 2 will be on and relay 1 will be off([1~4] only 1 relay is working). 4. 2 Momentary+2 inter-lock: 2 relays are momentary, and 2 relays are inter-lock. 5. 2 Momentary+2 self-lock: 2 relays are momentary, and 2 relays are self-lock. 6. 2 Inter-lock+2 self-lock: 2 relays are inter-lock, and 2 relays are self-lock. How to compatible/add remote control and different working models? 1. Momentary: Press learn button 1 time, then press the control button 1-3s. 2. Toggle/Self-lock: Press learn button 2 times, then press the control button 1-3s. 3. Inter-lock/latched: Press learn button 3 times, then press the control button 1-3s. 4. 2 Momentary+ 2 inter-lock: Press learn button 4 times, then press the control button 1-3s. 5. 2 Momentary+ 2 self-lock: Press learn button 5 times, then press the control button 1-3s. 6. 2 Inter-lock+ 2 self-lock: Press learn button 6 times, then press the control button 1-3s. How to remove/delete the remote control? Press the learn button 8s, till the indicator light flashes to off. 4. Package Included 1 x 12~36V 4Channel Switch Receiver (with cover) 2 x Remote Control Transmitter (Include 23A Batteries For Controller) 1 x Using instructions.

• 🛠️【Relay Switch Working voltage】: DC 12V-36V 24V；Output current: Working Frequency : 433MHZ；10A,【Work Model】1. Self -lock/Toggle 2. Momentary. 3.Inter-lock /Latched 4.Momentary+self-lock. [ Change by the learn button].
• 🛠️【Wide Use】: Mainly used in electric doors,Lamps, Pumps, Motors, Fans, windows, lifting equipment, lifters and security industries. window control system and anti-theft alarm realize the wired to wireless system transfer.

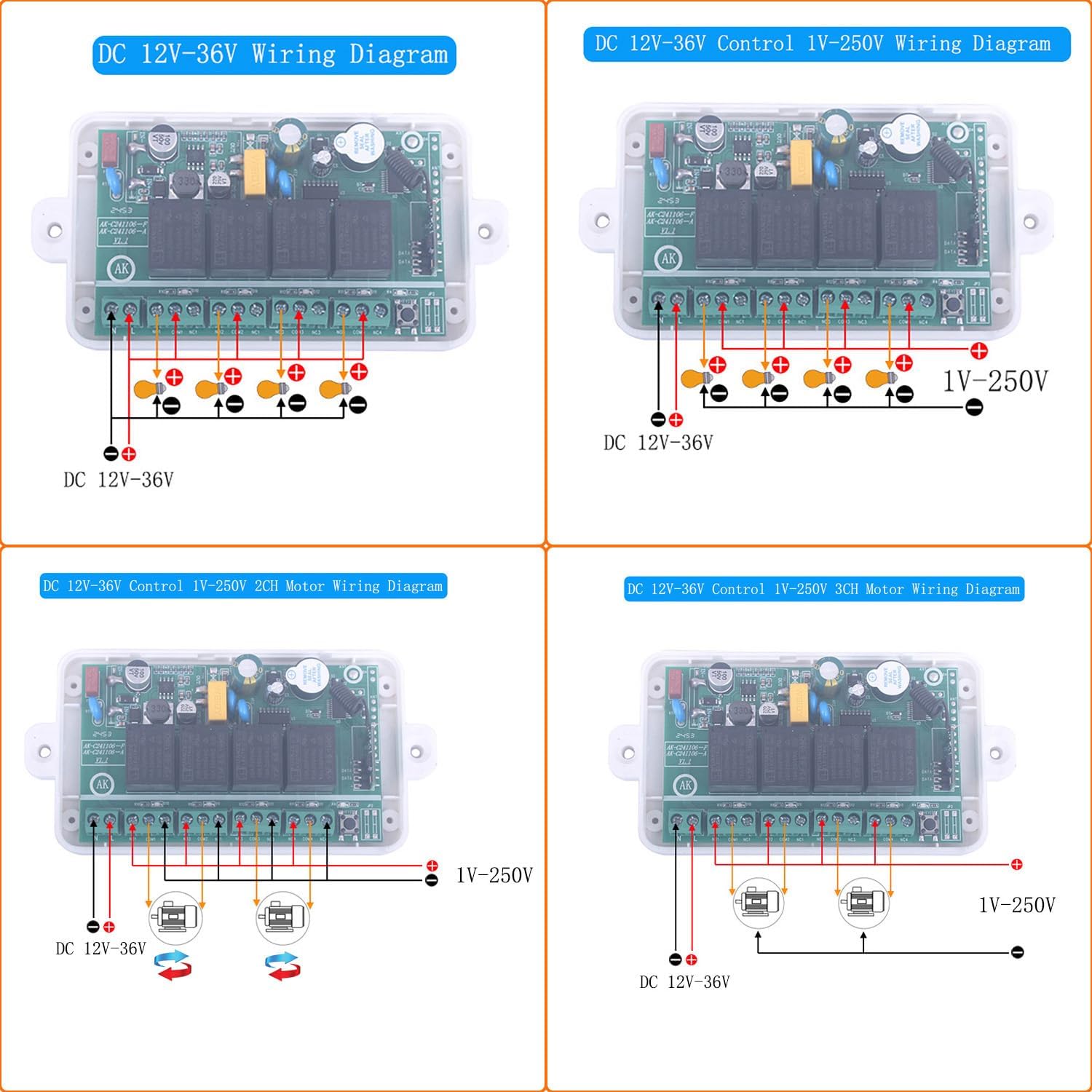

• 🛠️【Muti-Voltage Control】The Remote switch can used 12V~36V control Low and high Voltage 1V-250V. Engineers can modify Control other wireless circuits.

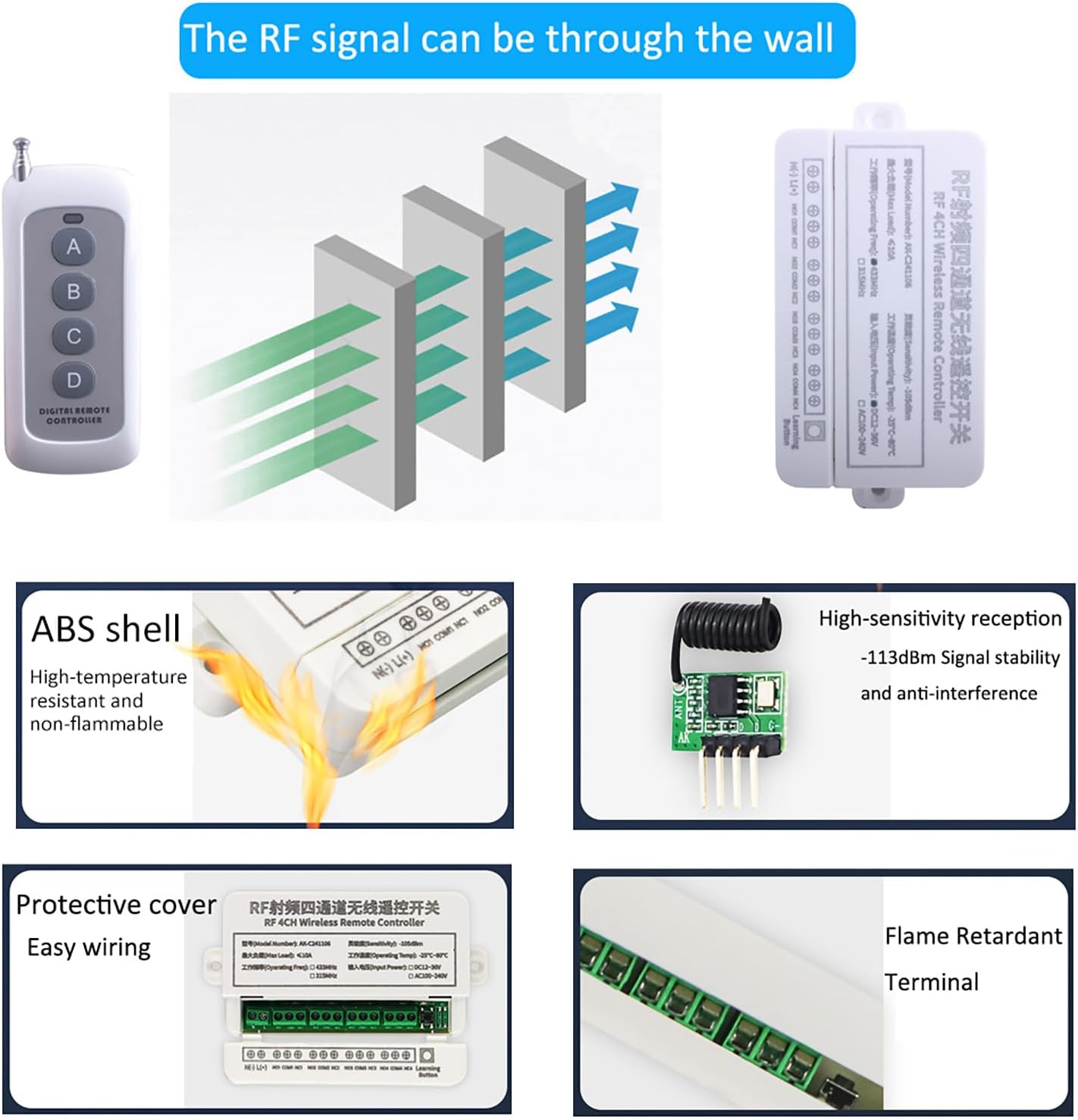

• 🛠️【SIGNAL Stability of wireless switch】the remote control adopts technology, stable signal. Signal of the wireless switch can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance, Max range is up to 100 meters with no obstacle.
• 🛠️【Easy to Use 】We have made transmitter and receiver working together and test it before ship it,The remote control through learn code add and remove.
